Brass Cable Glands-NINGBO SANZHENG PLASTIC CO., LTD.

Brass Cable Glands are cable fixing and sealing components used to secure cables entering electrical equipment and enclosures. They provide strong cable retention, waterproof protection, and reliable sealing performance for industrial and electrical installations.

Applications

Brass Cable Glands are widely used in machinery control systems, distribution cabinets, electrical panels, automation equipment, outdoor equipment, and industrial installations. They are suitable for fixing and protecting power cables, control cables, and signal cables where secure sealing and environmental protection are required.

Core Features
1. Durable Material Construction – Made with a nickel-plated brass body, PA66 seal, and NBR sealing ring.

2. High Protection Rating – Certified with CE, ROHS, and REACH, featuring IP68 waterproof and dustproof protection for harsh operating environments.

3. Wide Temperature Performance – Supports static operation from -40℃ to 100℃ (short-term 120℃) and dynamic operation from -20℃ to 80℃ (short-term 100℃).

4. Flexible Thread Options – Standard thread types suit equipment with internal threads or thin plates, while longer thread designs are available for thicker panels.

5. Easy Installation and Strong Protection – Special clamp and seal design enables quick installation, wide cable compatibility, strong stretching resistance, and resistance to salt, acid, alcohol, grease, and other solvents.

Customization Service

OEM and ODM services are available, including custom colors, sizes, private labeling, and packaging. Samples can be provided for quality evaluation, and reliable after-sales support is offered throughout the cooperation.

Certified Quality

Our products comply with international quality and safety standards and are certified with UL Listed, TÜV, CE, UKCA, ISO 9001, RoHS, REACH, and amfori BSCI, ensuring dependable performance for global markets.

Minimum Order Quantity

The minimum order quantity is 1,000 packs per size, making it suitable for wholesale distribution, retail programs, and OEM projects.

Lead Time

Brass Cable Glands lead time depends on the order quantity. We provide efficient production scheduling and on-time delivery to meet your purchasing requirements.

FAQ
Q1: What types of cables can Brass Cable Glands support?
A: Brass Cable Glands are suitable for power cables, control cables, signal cables, and industrial wiring systems.

Q2: Are Metal Cable Glands suitable for heavy-duty applications?
A: Yes, Metal Cable Glands provide strong mechanical protection and are widely used in demanding industrial environments.

Q3: What are Armoured Cable Glands used for?
A: Armoured Cable Glands are designed for cables with additional protection layers, providing secure fixing and reliable sealing.

Q4：Can Brass Cable Glands be customized for different equipment?
A： Yes, they can be customized with different thread sizes, dimensions, and specifications to fit various installations.

Q5：Why choose Industrial Cable Glands for electrical systems?
A： Industrial Cable Glands offer stable sealing, cable retention, and protection against dust, moisture, and harsh conditions.

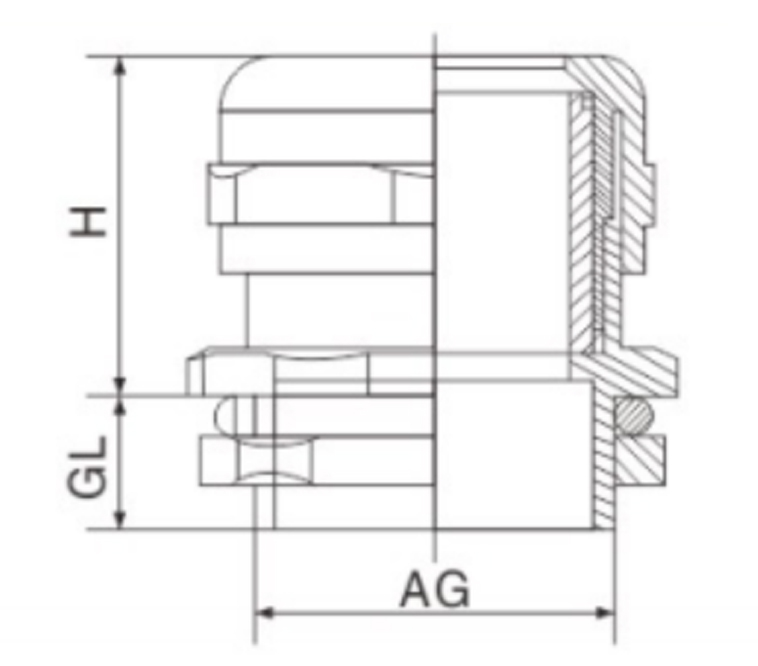

ITEM.N0	Cable range	Thread 0. D.	Mounting hole diameter	Thread length GL	Joint length H	Spanner
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
M8 x 1	5.5-2	8	8-8.2	5	16	12
M10 x 1	6-3	10	10-10.2	7	19	14
M12 x 1.5	6.5-3	12	12-12.2	7	19	14
M14 x 1.5	8-4	14	14-14.2	7	19	17
M16 x 1.5	5-4	16	16-16.2	8	20	18
M18 x 1.5	10-5	18	18-18.2	8	21	20
M20 x 1.5	12-6	20	20-20.2	8	22	22
M22 x 1.5	14-10	22	22-22.2	8	23	24
M24 x 1.5	14-10	24	24-24.2	9	25	24/27
M25 x 1.5	14-10	25	25-25.2	9	25	24/27
M27 x 1.5	18-13	27	27-27.2	9	27	30
M28 x 1.5	18-13	28	28-28.2	9	27	30
M30 x 1.5	18-13	30	30-30.2	9	29	30/32
M32 x 1.5	22-15	32	32-32.2	10	29	35
M36 x 1.5	25-18	36	36-36.2	10	31	40
M40 x 1.5	25-18	40	40-40.2	11	31	40/45
M42 x 1.5	30-22	42	42-42.2	11	37	45
M48 x 1.5	33-25	48	48-48.2	11	37	50/52
M50 x 1.5	38-32	50	50-50.2	12	37	50/52
M54 x 1.5	38-32	54	54-54.2	12	38	57
M60 x 1.5	44-37	60	60-60.2	13	38	64
M63 x 1.5	44-37	63	63-63.2	13	38	64/68
PG6/7	6.5-3	12.5	12.5-12.7	7	19	14
PG9	8-4	15.2	15.2-15.4	8	20	17
PG11	10-5	18.6	18.6-18.8	8	21	20/21
PG13.5	12-6	20.4	20.4-20.6	8	22	22
PG16	14-10	22.5	22.5-22.7	9	23	24
PG19	14-10	25	25-25.2	9	25	24/27
PG21	18-13	28.3	28.3-28.5	9	27	30
PG25	22-15	32	32-32.2	10	29	35
PG29	25-18	37	37-37.2	11	31	40
PG36	33-25	47	47-47.2	12	37	50
PG42	38-32	54	54-54.2	13	38	57
PG48	44-37	59.3	59.3-59.5	14	38	64
PG63	52-42	72	72	15	42	77

Q: How long will it take to receive a reply after placing the inquiry?

We attach great importance to every inquiry. On working days, we will respond within 12 hours after receiving the inquiry.

Q: What products do you mainly offer?

Our products include nylon cable ties, stainless steel cable ties, cable connectors, cable clips, cable labels, and cable connectors.

Q: How to ensure product quality?

The company has obtained certifications such as ISO9001, CE, REACH, ROHS, and SGS. It can also customize products that are resistant to high and low temperatures as well as UV rays. The factory has an independent laboratory equipped with tensile testing machines, moisture detectors, and high/low temperature testing equipment, which can effectively ensure product quality.

Q: What are the payment methods?

During the quotation process, the trade terms (such as FOB, CIF, etc.) will be confirmed. For mass production, a 30% advance payment is usually required, and the remaining amount will be paid upon presentation of a copy of the bill of lading. The main payment method accepted is T/T, and L/C can also be negotiated for use.
