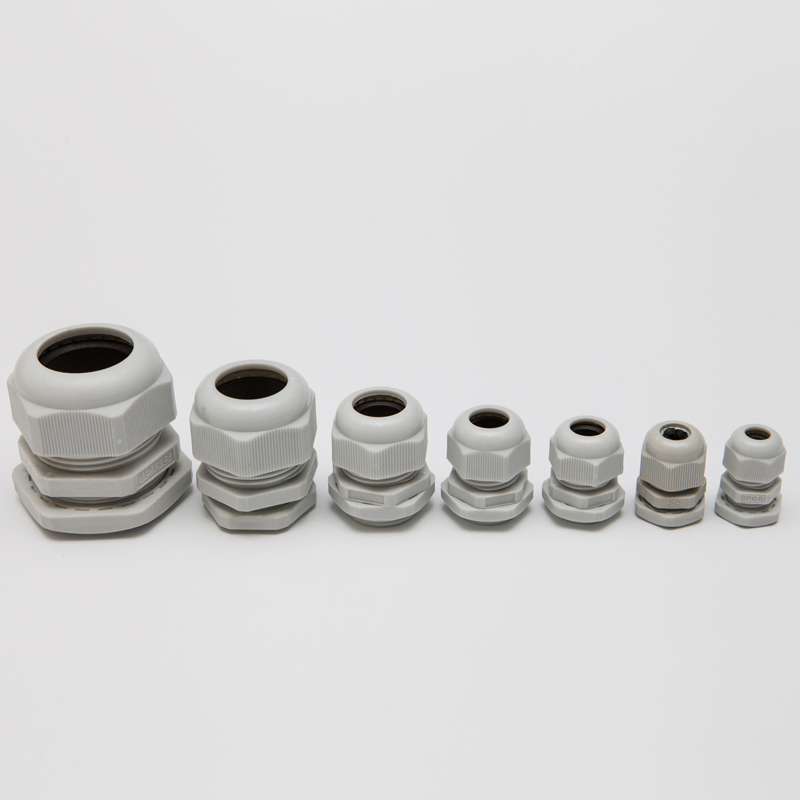

Back to listNylon Cable Glands(Metric)

CABLE TIES AND WIRING ACCESSORIES >Nylon Cable Glands(Metric)

◆ Threaded entry：Metric ◆ Color ：black and grey ◆ Working temperature：-40℃-100℃，the item can also endure 120℃ instantly. ◆ protection：IP68 ◆ Standard：IEC698

Inquiry Inquiry Contact Us Download

Product Details

public/upload/image/20250514/20250514205057_21576.png

编号 Item NO.	Threaded entry metric (mm)	Cable range φ(mm)	D1(mm)	D2(mm)	Panel mounting hole (mm)	L1(mm)	L2 (mm)	A (mm)
MG-12	M12×1.25	7.6-4.6	12	M16×1.5	12.5	8.5	16	19
MG-16	M16×1.5	10-6	16	M20×1.5	16.5	15	19.5	24
MG-20	M20×1.5	14-9	20	M25×1.5	20.5	15	21.5	30
MG-25	M25×1.5	18-13	25	M31×2	25.5	15	24.5	36
MG-32	M32×1.5	25-18	32	M38×2	33	15	27.5	46
MG-40	M40×1.5	30-24	40	M46×2	41	20	31	54
MG-50	M50×1.5	39-30	50	M58×2	51	23	37	67
MG-63	M63×1.5	48.5-40	63	M72×2	64	24	42	81.5
