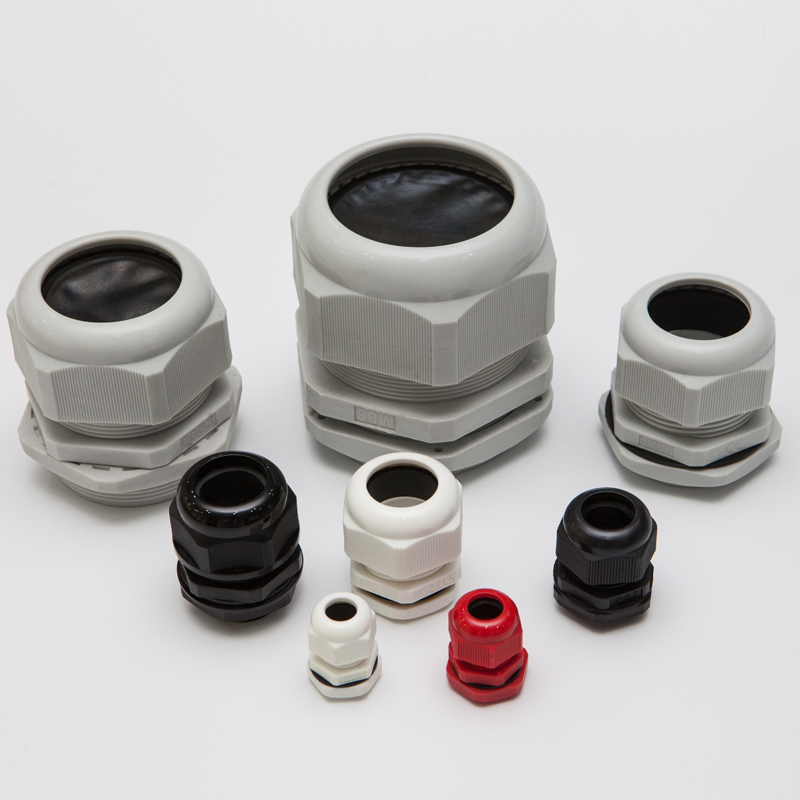

Back to listNylon Cable Glands(Metric)

Cable glands & wiring ducts >Nylon Cable Glands(Metric)

◆ Threaded entry：Metric
◆ Color ：black and grey
◆ Working temperature：-40℃-100℃，the item can also endure 120℃ instantly
◆ protection：IP68
◆ Standard：IEC698

Inquiry Inquiry Contact Us Download

Product Details

public/upload/image/20250514/20250514204959_64091.png

编号 Item NO.	D1(mm)	D2(mm)	B1(mm)	L1(mm)	L4(mm)	电缆直径范围 (mm) Cable range
M12 ×1.5	12	8.3	6	7.9	13.3	3-6.5
M16×1.5	16	10.9	9.6	15	15.8	5-10
M20S×1.5	20	14.8	12.5	15	18.4	3-7
M20M×1.5	20	14.8	12.5	15	18.4	6-12
M20L×1.5	20	15.5	14.5	15	19.5	10-14
M25×1.5	25	21	18.4	15	22.3	13-18
M32×1.5	32	26	26.2	15	24.8	18-25
M40×1.5	40	33	33.4	18	31.6	25-32
M50×1.5	50	42.5	36.5	18	31.6	30-38
M63×1.5	63	54.1	44	18.5	32.6	34-44
