Back to listInsulated Pin Terminals

CABLE TIES AND WIRING ACCESSORIES >Insulated Pin Terminals

Material: Brass+Nylon A.W.G.:0.5~1.5mm² (22-16) Maximum current: Imax=19A A.W.G.:0.5~1.5mm² (16~14) Maximum current: Imax=27A A.W.G.:4~6mm² (12~10) Maximum current: Imax=48A

Inquiry Inquiry Contact Us Download

Product Details

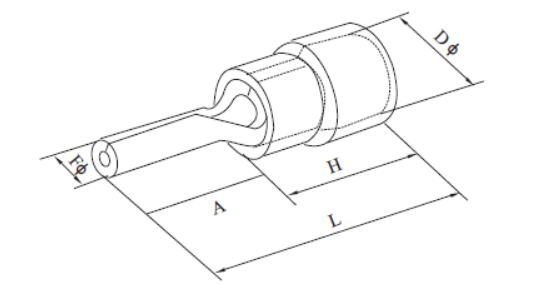

	编号 Item NO.	尺寸Dimension				颜色 Color
	编号 Item NO.	F φ (mm)	L (mm)	H (mm)	H (mm)	颜色 Color
导线截面: 0.5~1.5mm²(22-16) 最大电流:Imax=19A	PTV1.25-9	1.9	19.0	10.0	4.3	红Red
	PTV1.25-10	1.9	20.0
	PTV1.25-12	1.9	22.0
	PTV1.25-13	1.9	23.0
	PTV1.25-18	1.9	28.0
导线截面: 1.5~2.5mm² (16~14) 最大电流:Imax=27A	PTV2-9	1.9	19.0	10.0	4.3	兰Blue
	PTV2-10	1.9	20.0
	PTV2-12	1.9	22.0
	PTV2-13	1.9	23.0
	PTV2-18	1.9	28.0
导线截面: 4~6mm² (12~10) 最大电流:Imax=48A	PTV5.5-13	2.8	25.5	12.5	6.7	黄yellow
