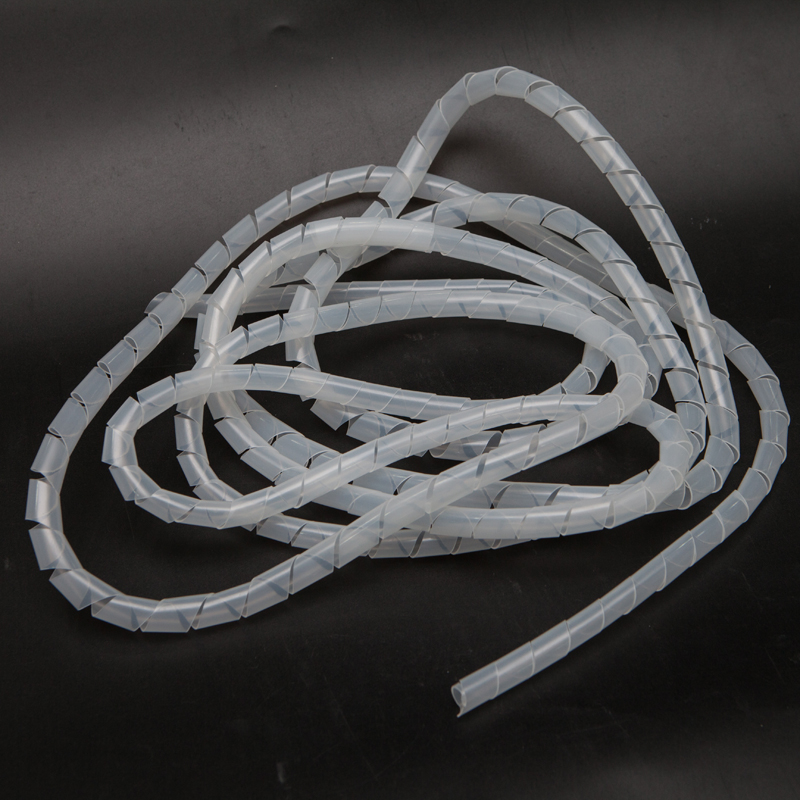

Back to listSpiral Wrapping Bands

CABLE TIES AND WIRING ACCESSORIES >Spiral Wrapping Bands

◆ Material: made from PE. ◆ Usage: fix one end with safety belt first, then circle the wires clockwise to make them tighen. ◆ Application: a protection wear for electric wires, and make them insulation and look nice.

Inquiry Inquiry Contact Us Download

Product Details

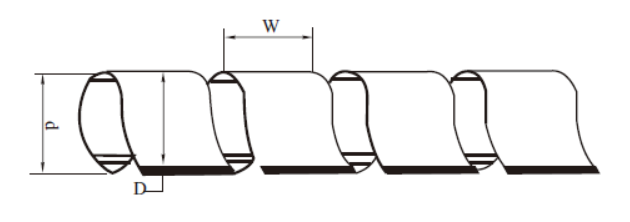

编号 Item NO.	内径(D) (mm)	外径(D) (mm)	螺距(W) (mm)	捆扎范围(mm) Wrapping Range	包装 Packing
SWB-03	1.5	3.0	4.0	1.5-10	10M/ROLL
SWB-06	4	6	7.0	4-50
SWB-08	6	8	10.8	6-60
SWB-10	7.5	10	11.4	7.5-60
SWB-12	9	12	13.9	9-65
SWB-15	12	15	15.0	12-75
SWB-19	15	19	18.2	15-100
SWB-24	20	24	19.6	20-130
SWB-30	26	30	43.0	26-150
