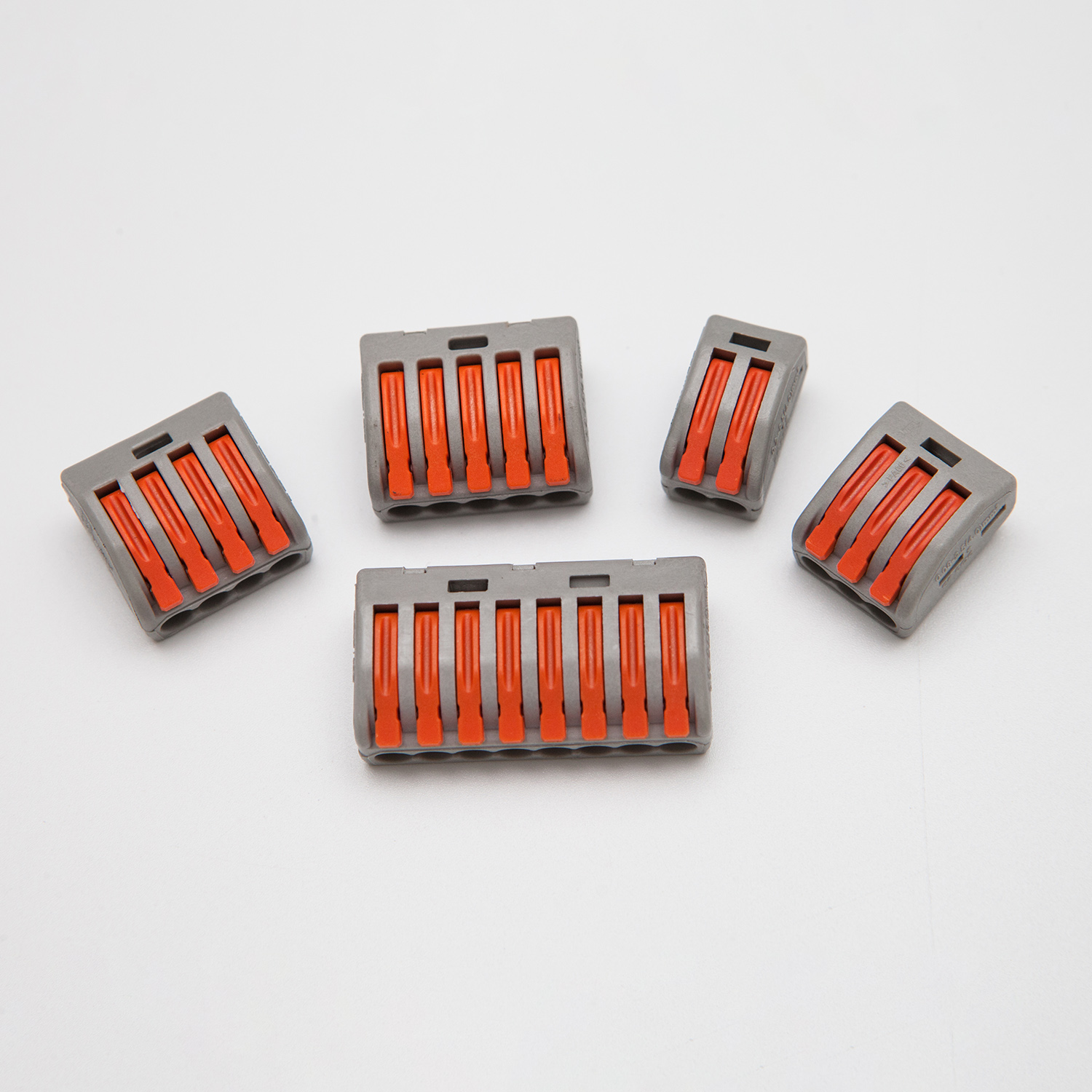

Back to listPull rod quick coupler

Terminals & Connectors >Pull rod quick coupler

Wire Connectors
◆ Poly carbonate, UL 94V- 0 flame-retardant shell.
◆ Stainless steel elastic plate, high conductivity cupper plate to connect wires.
◆ Insert wires after peeling the coat.
◆ Suitable for solid wire and strand wire, resuable(can insert wires of biggerdiameter than the ones striped out)
◆ Suitable for fixing wires for lighting and electrical construction.

Inquiry Inquiry Contact Us Download

Product Details

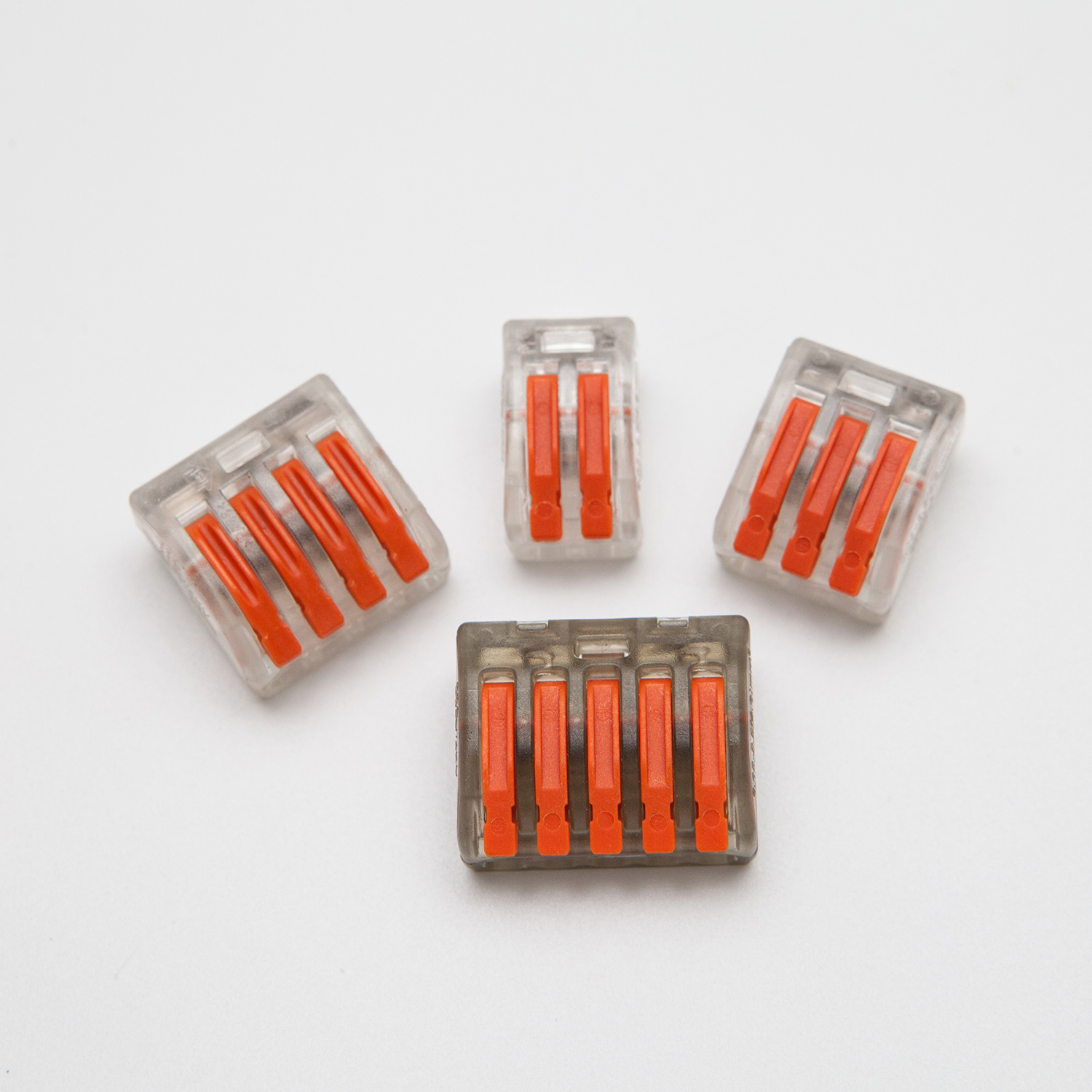

号 Item NO.	透明色编号 Transparent Color No.	极数 Poles	电气规格 Electrical Ratings	线径范围 Clamping Area Wire Range
PCT-212	PCT-212	2	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-213	PCT-213	3	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-214	PCT-214	4	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-215	PCT-215	5	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-218	PCT-218	8	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
