Back to listWire Connectors

CABLE TIES AND WIRING ACCESSORIES >Wire Connectors

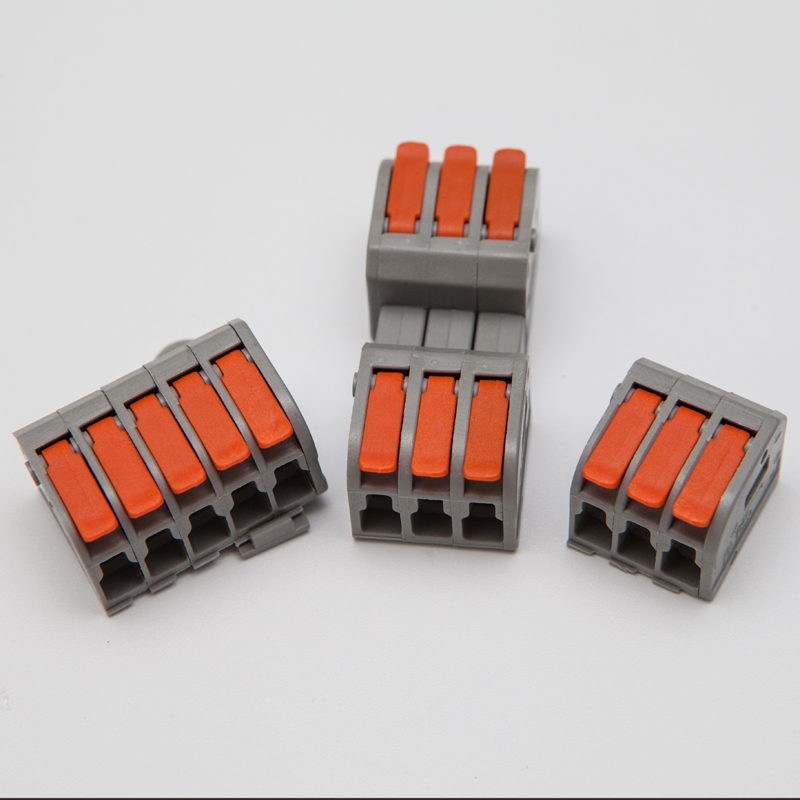

◆ Poly carbonate, UL 94V- 0 flame-retardant shell. ◆ Stainless steel elastic plate, high conductivity cupper plate to connect wires. ◆ Insert wires after peeling the coat. ◆ Suitable for solid wire and strand wire, resuable(can insert wires of biggerdiameter than the ones striped out) ◆ Suitable for fixing wires for lighting and electrical construction.

Inquiry Inquiry Contact Us Download

Product Details

编号 Item NO.	透明色编号 Transparent Color No.	极数 Poles	电气规格 Electrical Ratings	线径范围 Clamping Area Wire Range
PCT-212	PCT-212	2	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-213	PCT-213	3	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-214	PCT-214	4	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-215	PCT-215	5	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
PCT-218	PCT-218	8	32A 400V	硬线/Solid wire:0.08-4.0mm² 软线/Solid wire:0.08-2.5mm²
