Back to listSafety -Type Wire Joints

Terminals & Connectors >Safety -Type Wire Joints

◆ Shell material: Nylon 66, 94V-2, certificated agree, by UL.
◆ Usage: Peel the coat of wire, then insert to tube, use pincers to fix them.
◆ Feature: Nylon shell , long copper tube ,easy to conduct electricity and hold wire tightly.

Inquiry Inquiry Contact Us Download

Product Details

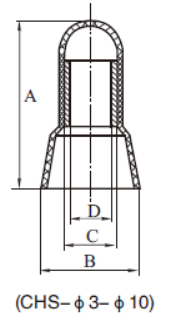

编号 Item NO.	A(高) (mm)	W(宽)		铜管内径 D(mm)	适用电线范围 mm²	Suitable Wires Awg
编号 Item NO.	A(高) (mm)	B (mm)	C(mm)	铜管内径 D(mm)	适用电线范围 mm²	Suitable Wires Awg
SZS-φ3	18	9	3.6	2.8	1.25	22-16
SZS-φ4	21	9.5	3.9	3	2	16-14
SZS-φ5	22.5	10.5	4.8	4	5.5	12-10
SZS-φ6	24	12	5.6	4.8	8	8
SZS-φ7	25.5	13	6.5	5.5	10	8-6
SZS-φ8	25.5	14	7.5	6	13	6
SZS-φ10	29.5	15.5	9.3	7.8	16	4
