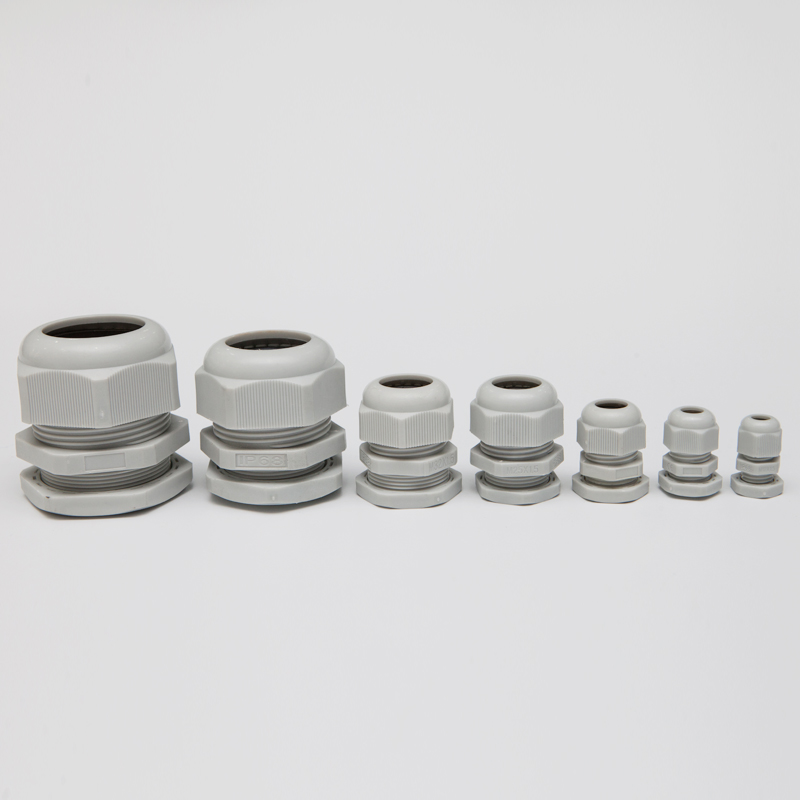

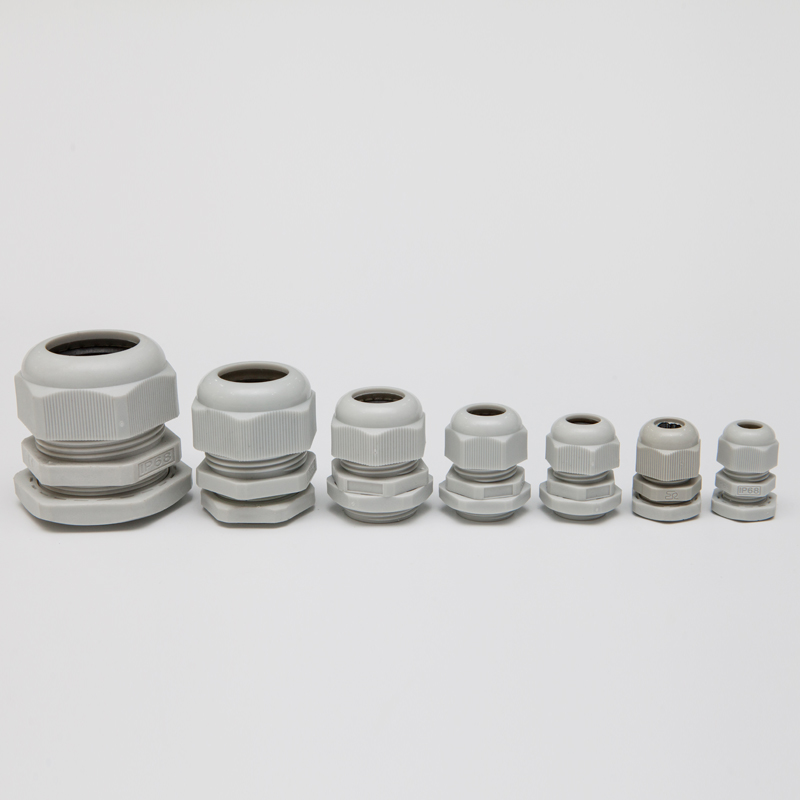

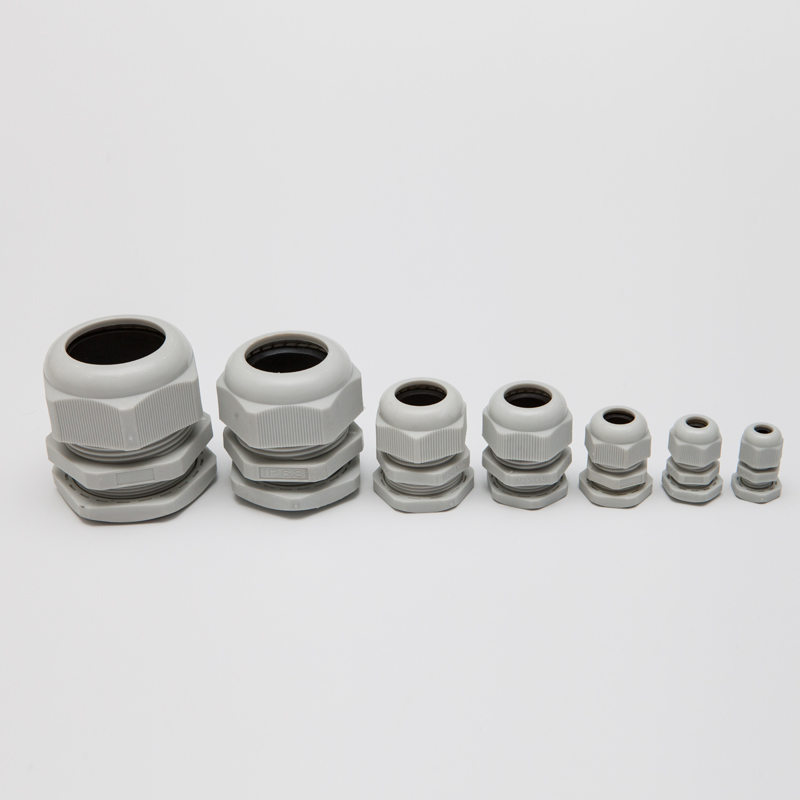

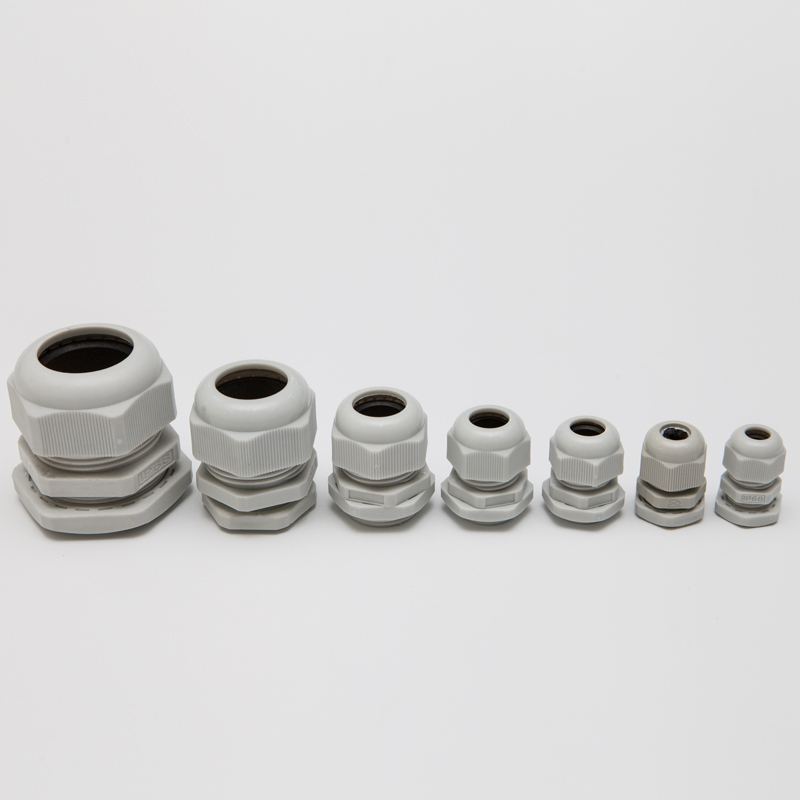

Nylon Cable Glands

SZS · Cable glands & wiring ducts

Nylon Cable Glands

◆ Material: made from UL Nylon 66, 94V-2 and tighten ring from rubber.<br />
◆ Feature:<br />
1.Special design of clamp ring, good clamping strength and protective for electric machinery.<br />
2.No need of disassembling the cable gland, cable can go through directly then tighten it, easy to operate and save time.<br />
◆ Application：used for machinery control box, distribution plate, machine and electrical, etc.
Request a quoteContact Sanzheng

Product details

public/upload/image/20250514/20250514204720_66859.png

编 号 Item NO.

D1(mm)

D2(mm)

L1(mm)

L2(mm)

L3(mm)

L4(mm)

B1(mm)

电缆直径范围
(mm) Cable range

PG-07

12.1

8.7

8.3

5

15.0

13.8

6.9

3.5-6

PG-09

16.2

11.1

8.7

4.6

16.1

15.7

8.9

4-8

PG-11

18.8

13.4

8.7

5.1

18.1

17.9

11.3

5-10

PG-13.5

20.1

15.5

8.9

5.0

19.2

18.3

12.8

6-12

PG-16

22.3

17.6

11.3

5.2

20.2

18.1

13.7

10-14

PG-19

24.1

19.1

11.1

5.1

21.1

20.5

15.8

12-15

PG-21

26.7

21.4

11.1

5.1

23.0

22.0

17.4

13-18

PG-24

30.1

24.8

12.8

5.8

23.9

23.7

23.1

15.22

PG-29

35.9

28.8

11.9

6.9

24.4

23.5

25.3

18-25

PG-36

46.4

39.1

16.0

7.8

30.7

27.3

31.9

22-32

PG-42

53.9

46.7

15.4

7.9

33.2

28.5

37.1

30-38

PG-48

60.2

52.6

18.0

7.9

35.5

30.3

45.1

34-44

PG-63

70.6

63.9

28.9

8.9

41.4

41.3

49.3

42-54

↑
