Insulated Blade Terminals

SZS · lnsuated Terminal

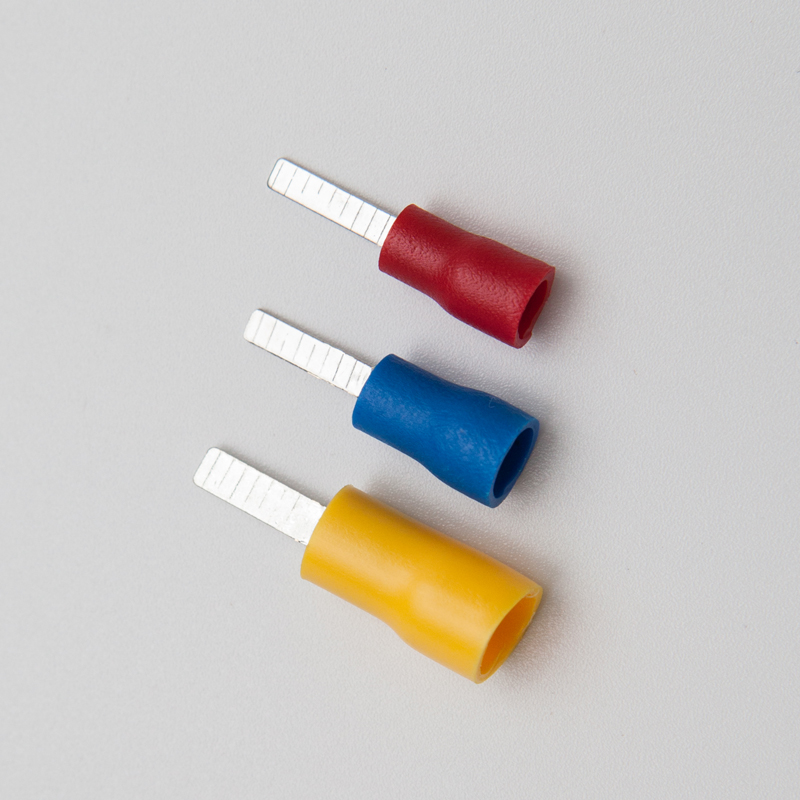

Insulated Blade Terminals

Material: Brass+Nylon <br />
A.W.G.:0.5~1.5mm² (22-16) Maximum current: Imax=19A<br />
A.W.G.:0.5~1.5mm² (16~14) Maximum current: Imax=27A<br />
A.W.G.:4~6mm² (12~10) Maximum current: Imax=48A
Request a quoteContact Sanzheng

Product details


编 号
Item NO.

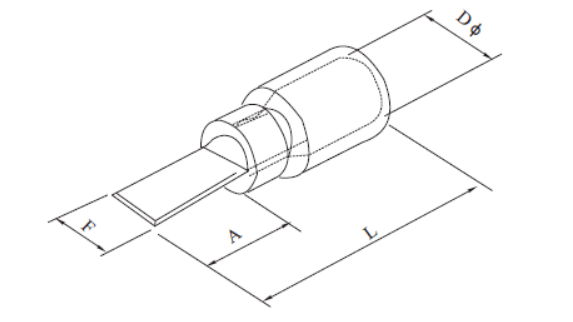

尺寸Dimension

F(mm)

L(mm)

A(mm)

D (mm)

导线截面:
     0.5~1.5mm² (22~16)
最大电流:Imax=19A

DBV1.25-10

2.3

20.0

10.0

4.3

DBV1.25-11

3.0

21.0

11.0

DBV1.25-14

3.0

24.0

14.0

DBV1.25-18

2.3

28.0

18.0

导线截面:
     1.5~2.5mm²(16~14)
     最大电流:Imax=27A

DBV 2-9

2.8

19.0

9.0

4.9

DBV 2-15

2.3

25.0

15.0

DBV 2-18

2.3

28.0

18.0

导线截面:
     4~6mm² (12~10)
     最大电流:Imax=48A

DBV 5.5-10

2.8

22.5

10.0

5.6



↑
