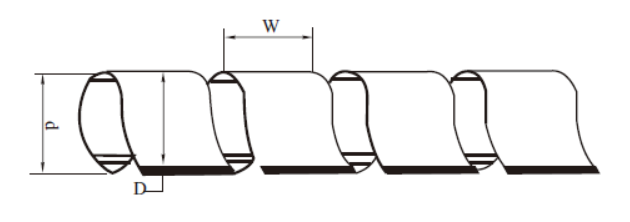

编 号 | 内 径(D) | 外 径(D) | 螺距(W) | 捆扎范围(mm) | 包 装 |
SWB-03 | 1.5 | 3.0 | 4.0 | 1.5-10 | 10M/ROLL |
SWB-06 | 4 | 6 | 7.0 | 4-50 | |
SWB-08 | 6 | 8 | 10.8 | 6-60 | |
SWB-10 | 7.5 | 10 | 11.4 | 7.5-60 | |
SWB-12 | 9 | 12 | 13.9 | 9-65 | |
SWB-15 | 12 | 15 | 15.0 | 12-75 | |
SWB-19 | 15 | 19 | 18.2 | 15-100 | |
SWB-24 | 20 | 24 | 19.6 | 20-130 | |
SWB-30 | 26 | 30 | 43.0 | 26-150 |
SZS · Heat shrinkable Tube

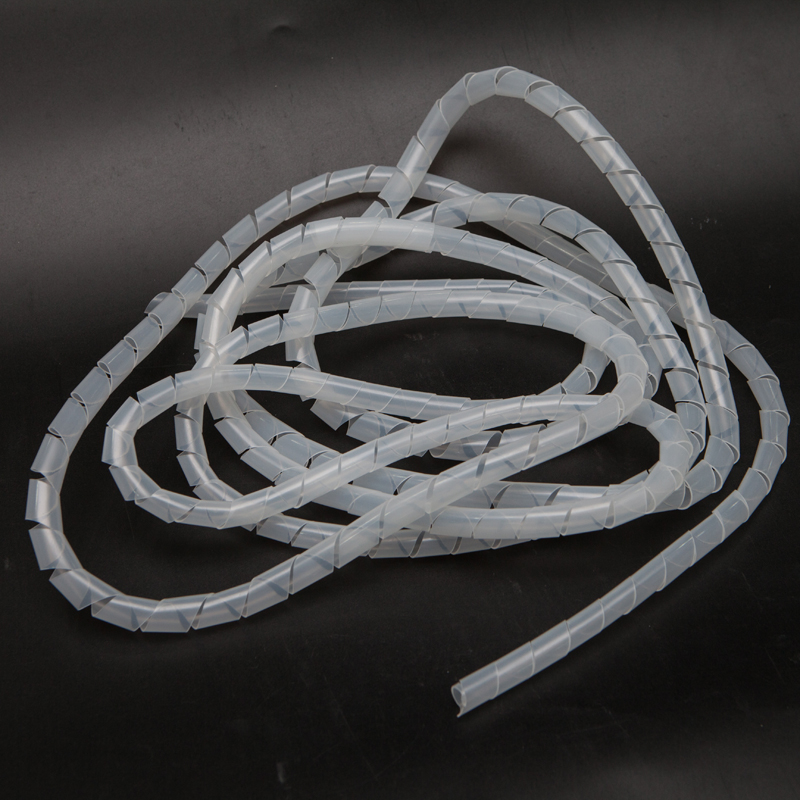

Spiral Wrapping Bands
◆ Material: made from PE.<br />
◆ Usage: fix one end with safety belt first, then circle the wires clockwise to make them tighen.<br />
◆ Application: a protection wear for electric wires, and make them insulation and look nice.
◆ Usage: fix one end with safety belt first, then circle the wires clockwise to make them tighen.<br />
◆ Application: a protection wear for electric wires, and make them insulation and look nice.
