编 号 Item NO. | 颜色 Color | 极数 Poles | 电气规格 Electrical Ratings | 线径范围 Clamping Area Wire Range |
PCT-602 | 橙色 Orange | 2 | 32A, 400V | 硬线/Solid wire:1.5-4.0mm² |
PCT-604 | 红色 Red | 4 | 32A, 400V | 硬线/Solid wire:1.5-4.0mm² |
PCT-606 | 棕色 Brown | 6 | 32A, 400V | 硬线/Solid wire:1.5-4.0mm² |
PCT-608 | 灰色 Grey | 8 | 32A, 400V | 硬线/Solid wire:1.5-4.0mm² |
SZS · Terminals & Connectors
Plug in quick coupler

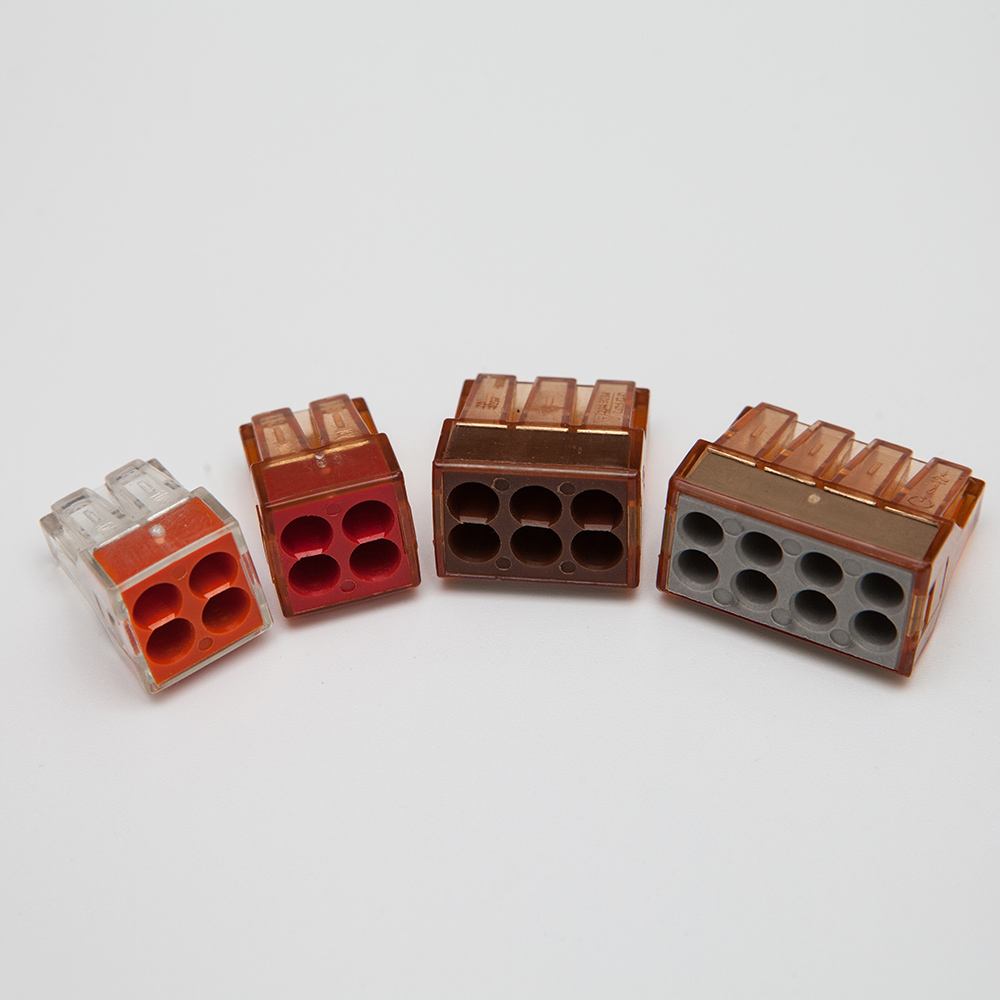

Push-in Wire Connectors<br />
◆ Poly carbonate, UL 94V- 0 flame-retardant shell.<br />
◆ Stainless steel elastic plate, high conductivity cupper plate to connect wires.<br />
◆ Insert wires after peeling the coat.<br />
◆ Suitable for solid wire and strand wire, resuable(can insert wires of biggerdiameter than the ones striped out)<br />
◆ Suitable for fixing wires for lighting and electrical construction
◆ Poly carbonate, UL 94V- 0 flame-retardant shell.<br />
◆ Stainless steel elastic plate, high conductivity cupper plate to connect wires.<br />
◆ Insert wires after peeling the coat.<br />
◆ Suitable for solid wire and strand wire, resuable(can insert wires of biggerdiameter than the ones striped out)<br />
◆ Suitable for fixing wires for lighting and electrical construction
